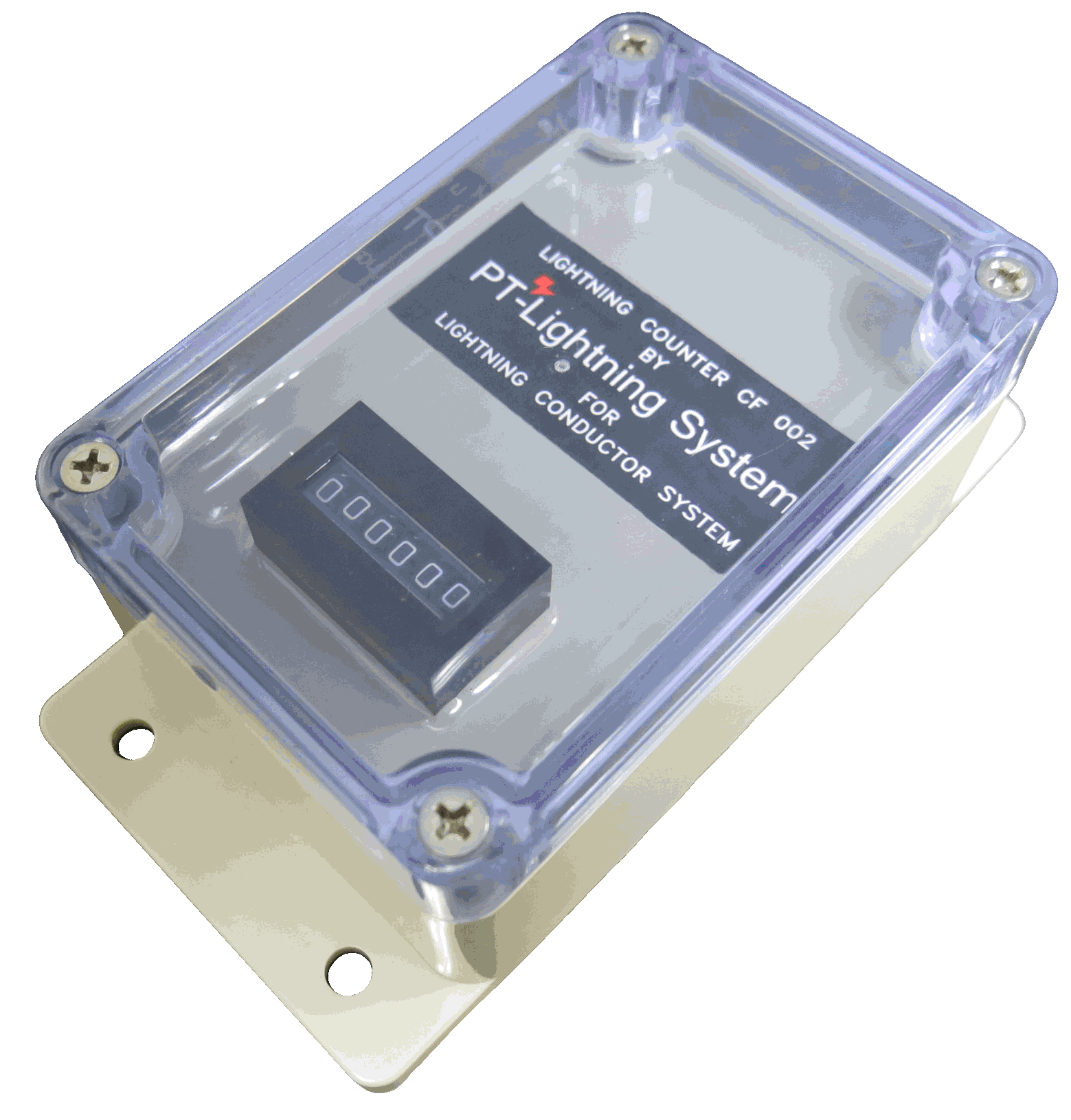

LIGHTNING COUNTER

• This Lightning Counter keeps record data for the number of lightning strikes after lightning system hit by lightning discharge. It provides data for analyze the performance of lightning system.

• The Lightning Counter can record up to 999999 lightning strikes.

• The counter triggers pulse from 250A - 150KA. The counter digital number cannot be reset.

• The lightning counter is made of an water resistance housing to protect circuit inside the box.

• The lightning counter is always attached on down conductor.

• It is high reliable, waterproof and medium size equipment.

• Quick and easy installation and no any external power required.

• Permit entry of standard copper tape and the cable size is less than 40 mm.

• The digit reading of counter is triggered by every lightning stroke that coursed by electromagnetic field of passing lightning energy.

Counter	Specification
Operation Current	: 250A-150KA
Dimension	: (103L X 68W X 52D)mm
Display Window	: 000000 six digits showing
Water Proofing	: Yes
Weight	: Approx. 0.47kg

INSTALLATION PURPOSE

• Monitoring the lightning strike damage on the lightning head after lightning happened.

• Providing valuable statistical information for the lightning system area.

• Providing an effective performance of monitoring the lightning protection system.

• The placement of the device in between lightning protection down conductor or earth pit.

*The specifications and details will be changed without further notice.
