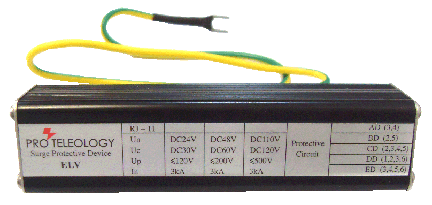

Surge Protection Device

Whether data wire installed inside or outside, network may be stroke instant by high voltage lightning surge, NEMP and other induced electromagnetic disturbances on network. It can lost and damage data wire, worse to destroy the equipment or pausing and stopping machine.  SPD-RJ11 series surge protective device is designed to control instant voltage in the innocuous range.  And it can effectively protect interface such as telephone, computer network, satellite communication and communication equipment, service, repeaters, router, Hub, modem etc.

Model

Description

SPD-RJ11/

AD110

BD110

CD110

DD110

ED110

AD48

BD48

CD48

DD48

ED48

AD24

BD24

CD24

DD48

ED48

Working voltage (Un)

DC110V

DC48V

DC24V

Maximum Working voltage (Uc)

DC150V

DC60V

DC30V

Claim Voltage (Up)

?500V

?200V

<120V

Nominal discharging current (In)

3kA (8/20us)

Maximum discharge current (Imax)

10kA Imax (8/20us)

Transport rate(MHz)

10MHz

Insert detraction

<0.5db

Connector base

RJ11

Interface form

3,4

2,5

2,3,4,5

1,2,3,6

3,4,5,6

3,4

2,5

2,3,4,5

1,2,3,6

3,4,5,6

3,4

2,5

2,3,4,5

1,2,3,6

3,4,5,6

Protect form

Complete protective mould

Response time (ns)

<1ns

House material

Aluminum

eg.

SPD-RJ11/CD110

RJ11 Type surge protection device with RJ11 protect base, position 2,3,4,5 of interface form, 10MHz Transfer rate and DC110V Working Voltage.

Production characteristic:

l        Compact in-line installation.

l        High energy handling capability.

l        Low Shunt Capacitance to reduce signal loss.

l        Fully automatic.

l        Improves system reliability.

l        Response time: Fast

l        Normal discharge current: 3KA (8/20)

l        Insert detraction: Low detraction

l        Installation: Easy and simple

Appliance and installment:

The series are installed in the equipment device input and output of network. SPD-RJ11 series products is connected with the especially protective device inside and must be grounded after connection..

** Detail and Specification are subject to change without further notice.
