Surge Protection Device

Whether data wire installed inside or outside, network may be stroke instant by high voltage lightning surge, NEMP and other induced electromagnetic disturbances on network. It can lost and damage data wire, worse to destroy the equipment or pausing and stopping machine.  ELV series surge protective device is designed to control instant voltage in the innocuous range.  And it can effectively protect interface such as communication, computer, remote signal line and self-controlling fire warning system etc.

 Description

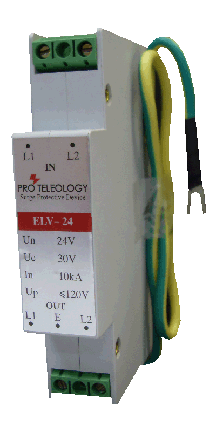

ELV - Model

5

12

24

Working voltage (Un)

DC 5V

DC 12V

DC 24V

Maximum Working voltage (Uc)

DC 6V

DC 15V

DC 30V

Claim Voltage (Up)

< 40V

< 60V

< 120V

Nominal discharging current (In)

10kA (8/20us)

Transfer rate MHz

10MHz

Insert detraction

<0.3db

Connector base

Screws

Response time (ns)

< 1ns

Production characteristic:

l        Compact in-line installation.

l        High energy handling capability.

l        Low Shunt Capacitance to reduce signal loss.

l        Fully automatic.

l        Improves system reliability.

l        Response time: Fast

l        Normal discharge current: 10KA (8/20)

l        Insert detraction: Low detraction

l        Installation: Easy and simple

Appliance and installment:

This series are installed in the equipment device input and output of network. ELV series products are connected with the especially protective device inside and must be grounded after connection.

** Detail and Specification are subject to change without further notice.
