RJ45 Type

Surge Protection Device

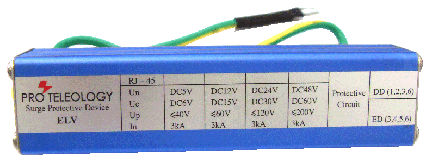

Whether data wire installed inside or outside, network may be stroke instant by high voltage lightning surge, NEMP and other induced electromagnetic disturbances on network. It can lost and damage data wire, worse to destroy the equipment or pausing and stopping machine.  SPD-RJ45 series surge protective device is designed to control instant voltage in the innocuous range.  And it can effectively protect interface such as computer network, satellite communication and communication equipment, service, repeaters, router, Hub, modem etc.

Model

Description

SPD-RJ45/

DD5

ED5

DD12

ED12

DD24

ED24

DD48

ED48

Working voltage (Un)

DC 5V

DC 12V

DC 24V

DC 48V

Maximum Working voltage (Uc)

DC 6V

DC 15V

DC 30V

DC 60V

Claim Voltage (Up)

< 40V

< 60V

< 120V

< 200V

Nominal discharging current (In)

3kA (8/20us)

Maximum discharging current (Imax)

10kA (8/20us)

Transfer rate MHz

10MHz

Insert detraction

<0.3db

Connector base

RJ45

Interface form

1,2,3,6

3,4,5,6

1,2,3,6

3,4,5,6

1,2,3,6

3,4,5,6

1,2,3,6

3,4,5,6

Response time (ns)

< 1ns

House material

Aluminum

eg.

SPD-RJ45/DD48

RJ45 Type surge protection device with RJ45 protect base, position 1,2,3,6 interface form, 10MHz Transfer rate and DC48V Working Voltage.

Production characteristic:

l        Compact in-line installation.

l        High energy handling capability.

l        Low Shunt Capacitance to reduce signal loss.

l        Fully automatic.

l        Improves system reliability.

l        Response time: Fast

l        Normal discharge current: 3KA (8/20)

l        Insert detraction: Low detraction

l        Installation: Easy and simple

Appliance and installment:

The series are installed in the equipment device input and output of network. SPD-RJ45 series products is connected with the especially protective device inside and must be grounded after connection.

** Detail and Specification are subject to change without further notice.
